The minerals are brightly fluorescent and can be used as reference for CL detector, or to test light tightness of EDS detector windows.

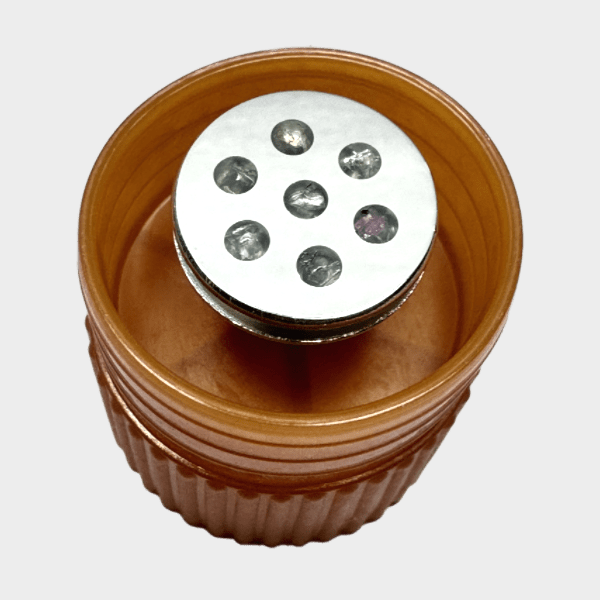

Cathodoluminescence reference mineral samples. It is mounted and polished in a standard 12.5 mm aluminum pin stub.

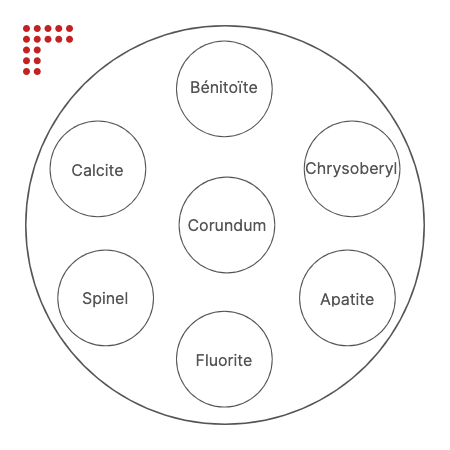

- Benitoite – BaTiSi3O9
- Apatite – Ca5(PO4)3(F,Cl,OH)
- Spinel – MgAl2O4
- Corundum – Al2O3
- Chrysoberyl BeAl2O4
- Fluorite – CaF2
- Calcite – CaCO3
Can be mounted on these SEM brands:
FEI / Thermo Fisher, Hitachi*, Jeol*, Phenom, Tescan and Zeiss microscopes.
- Product number: STUB_3_CL
- Price per unit: € 500,-
* Require a pin stub adapter
